Commercial Pass-Through Dishwashers: The Complete Buying Guide for Australian Commercial Kitchens

For a busy restaurant, café, hotel, club or catering kitchen, dishwashing is more than a cleaning task. It is part of the operational flow of the entire kitchen.

When plates, bowls, cutlery and trays cannot return to service quickly enough, dirty ware starts to pile up, staff are pulled away from other tasks and service can become harder to manage.

This is where a commercial pass-through dishwasher, also known as a hood-type dishwasher or upright dishwasher, can make a significant difference.

Designed for medium to high-volume warewashing, pass-through dishwashers allow racks to move from a dirty inlet side, through the machine and onto a clean outlet bench. This creates a more efficient workflow than repeatedly loading and unloading a front-opening dishwasher.

However, choosing the right machine involves more than comparing cycle times or price.

Capacity, water consumption, electrical requirements, rack size, steam management, drainage, bench layout and peak service demand all need to be considered.

This guide explains what Australian hospitality operators should know before investing in a commercial pass-through dishwasher.

What Is a Commercial Pass-Through Dishwasher?

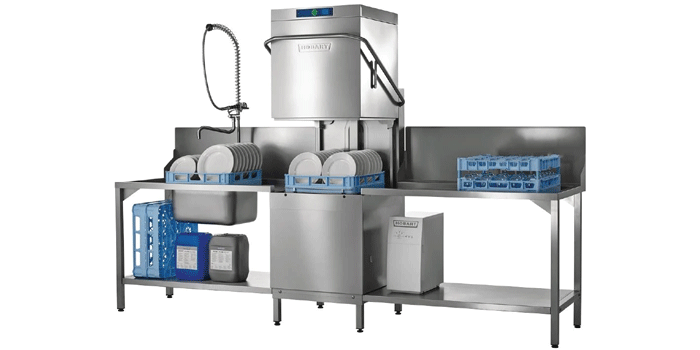

A pass-through dishwasher is a floor-standing commercial warewashing machine that normally sits between a dirty inlet bench and a clean outlet bench.

The basic process is:

Dirty dishes → Scrape → Pre-rinse → Rack → Wash → Clean side → Unload

The operator slides a loaded rack into the machine, lowers the hood, runs the wash cycle and then pushes the clean rack onto the outlet bench.

Unlike an undercounter dishwasher, staff do not usually need to bend down each time a rack is loaded or removed.

This workflow is particularly useful in restaurants, hotels, pubs, clubs, function venues, catering businesses, healthcare facilities, schools, canteens and other commercial kitchens processing repeated racks throughout service.

The key question is not whether a pass-through dishwasher is automatically better than an undercounter model.

It is whether it is better suited to your kitchen's volume, available space and service pattern.

Pass-Through vs Undercounter Dishwasher

An undercounter dishwasher can be an excellent choice for a smaller café, bar, takeaway or compact restaurant. It generally occupies less space and can handle moderate washing volumes effectively.

A pass-through dishwasher becomes more valuable as the volume of dirty ware increases.

Its main advantage is not simply a shorter wash cycle. It is the ability to create a continuous rack workflow.

While one rack is being washed, another can be prepared on the dirty side while staff unload a clean rack from the outlet bench. During a busy lunch, dinner service or function, this continuous movement can make a considerable difference.

Watch what happens in your wash area during your busiest service.

If dirty dishes regularly pile up, staff wait for clean crockery, your current machine operates almost continuously or functions create sudden waves of dirty plates, your existing dishwasher may no longer have enough capacity.

Buying a machine that is too small can create a daily bottleneck. Buying considerably more capacity than you need can waste both capital and valuable kitchen space.

How Much Dishwasher Capacity Do You Really Need?

Commercial dishwasher capacity is often advertised in racks per hour.

It is an important specification, but it should never be the only factor in your decision.

A machine may theoretically process a high number of racks per hour based on its shortest cycle. In a real kitchen, however, staff still need to scrape dishes, pre-rinse where necessary, load racks, move them into the dishwasher and unload clean items.

Actual throughput therefore depends on the whole dishwashing process.

When estimating your requirements, look at your busiest period rather than your average day.

Consider how many covers you serve during your busiest hour, how much crockery each customer generates and whether the machine also needs to wash trays, utensils, GN pans or preparation equipment.

Also think about when those dishes arrive.

A restaurant serving 150 customers gradually over several hours has a very different requirement from a function venue receiving hundreds of dirty plates immediately after a course.

Choose dishwasher capacity for peak demand, not simply your daily customer total.

Understanding Racks Per Hour

Racks per hour should be treated as a useful capacity indicator rather than a guarantee.

For example, a short cycle might theoretically allow a machine to complete a large number of racks per hour. But staff still need enough time and space to prepare each load.

Scraping, pre-rinsing, rack loading, soil level, cycle selection and staff availability can all influence real-world throughput.

Having enough racks is equally important.

If staff are waiting for an empty rack before preparing the next load, the dishwasher's advertised capacity becomes less meaningful.

A fast dishwasher cannot compensate for poor workflow around it.

Rack Size and Washware

Many commercial pass-through dishwashers use racks around 500 × 500 mm, although dimensions vary between machines.

Rack compatibility affects what can be washed efficiently, including dinner plates, bowls, cups, cutlery, glassware, trays, kitchen utensils and GN containers.

Different rack designs help keep these items positioned correctly so wash and rinse water can reach the required surfaces.

If you are replacing an existing dishwasher, check whether your current racks are compatible with the new machine.

Higher-volume kitchens may also benefit from purchasing additional racks. Staff can then prepare one load while another is washing and a clean rack is being unloaded.

It is a relatively simple way to improve the productivity of the entire wash area.

Water Efficiency Matters

A commercial dishwasher can operate dozens or even hundreds of cycles during a busy day, so water consumption can become an important operating cost.

Even a relatively small difference in water use per cycle can add up over thousands of cycles.

However, efficiency should never be judged on litres per cycle alone.

A dishwasher that uses very little water but produces inconsistent results or regularly requires items to be rewashed may not provide genuine savings.

When comparing machines, look at water consumption alongside wash tank capacity, rinse system design, available cycles, water pressure requirements and overall wash performance.

The goal is not simply to use the least water possible.

It is to achieve reliable cleaning while using water and energy efficiently.

Water, Energy and Chemical Costs Are Connected

Water consumption also affects more than the water bill.

Dishwashing water usually needs to be heated, while detergent and rinse aid form part of the process. As a result, changes in water consumption can also influence energy and chemical costs.

For a lightly used machine, differences between models may have a relatively small financial impact.

For a hotel, club or busy restaurant operating its dishwasher repeatedly throughout the day, small efficiency gains can become much more meaningful over several years.

This is why it is useful to consider total operating cost, not simply the purchase price.

The cheapest dishwasher to buy is not necessarily the cheapest dishwasher to own.

What Is Heat Recovery?

Heat-recovery technology is increasingly available on premium pass-through dishwashers.

Traditional hood-type machines can release a noticeable amount of warm vapour when the hood is raised.

Heat-recovery or steam-condensing systems capture some of this heat instead of allowing it to escape directly into the wash area. Depending on the machine, recovered thermal energy may then help preheat incoming water.

For a busy kitchen, this can potentially reduce wasted heat, lower energy demand and reduce the amount of steam released towards staff.

Heat recovery can therefore be particularly valuable where the dishwasher operates continuously for long periods.

However, installing a heat-recovery dishwasher should not automatically be assumed to remove every ventilation requirement.

Always check the manufacturer's installation specifications and confirm requirements for your particular site.

Steam Management and Staff Comfort

Steam management is not only an energy-efficiency consideration.

Think about the person operating the machine.

A traditional dishwashing area can become hot and humid during a long service. Every time a conventional hood opens, warm vapour may be released towards the operator.

Repeat that process dozens or hundreds of times during a shift and working conditions can become uncomfortable.

Modern insulated, heat-recovery and steam-condensing systems can help reduce heat and vapour around the dishwasher.

For a compact kitchen or high-volume operation, this can be a worthwhile feature even before potential energy savings are considered.

Wash Performance Is More Than Pump Power

Wash pump capacity frequently appears on commercial dishwasher specification sheets, but a bigger pump does not automatically mean cleaner dishes.

Cleaning performance depends on how the complete wash system works.

Wash-arm design, nozzle positioning, water circulation, filtration, temperature, rinse performance, chemical dosing and correct rack loading all contribute to the final result.

Filtration is particularly important in busy kitchens.

Food particles entering the wash tank can affect water quality if dishes are poorly scraped or the filtration system is not maintained properly.

This is why even a high-performance commercial dishwasher still relies on good operating practices.

Do You Need a Pre-Rinse Spray?

For most pass-through installations, a pre-rinse arrangement is highly useful.

However, pre-rinsing should not mean effectively washing every plate by hand before placing it into the dishwasher.

The objective is to remove larger food residues that could contaminate the wash tank or affect cleaning performance.

A good dirty-side layout allows staff to scrape, pre-rinse where necessary, load the rack and slide it directly into the dishwasher without unnecessary movement.

That simple workflow can have a significant impact on labour efficiency.

Think About Ergonomics

Dishwashing is repetitive work, so ergonomics should not be overlooked.

An undercounter machine usually requires frequent bending, whereas a pass-through system allows racks to move at approximately bench height.

When the inlet and outlet benches are correctly positioned, this can create a more comfortable and efficient workflow.

Some modern machines also feature lighter or assisted hood mechanisms.

Features like these may appear relatively minor when reading a specification sheet, but their value becomes easier to understand when someone operates the dishwasher repeatedly throughout a long shift.

Check Electrical Requirements Before Ordering

Pass-through dishwashers often require more power than smaller undercounter machines.

Many higher-capacity models require three-phase electricity, although single-phase machines are also available.

Before ordering, check the voltage, phase, current and heating requirements of the exact model you are considering.

Do not assume an existing electrical connection will suit a replacement machine simply because another commercial dishwasher is already installed.

If an electrical upgrade is required, it can significantly change the overall project cost.

Checking first can prevent an expensive surprise after delivery.

Water Supply, Water Pressure and Water Quality

Water requirements can also vary between machines.

Some dishwashers are designed for a hot-water connection, while certain heat-recovery models may use a cold-water supply.

Water pressure matters because it can affect rinse performance, so the manufacturer's specified operating range should always be checked.

Water quality is another important consideration.

Hard water can cause scale to accumulate on heating elements, wash arms and internal surfaces. Over time, this may reduce heating efficiency, affect wash performance and increase servicing requirements.

Where necessary, water treatment or a commercial water softener may be recommended.

It is much better to address water quality during installation than after scale has already started causing problems.

Don't Overlook Drainage

Some commercial dishwashers rely on gravity drainage while others incorporate or offer a drain pump.

This becomes important when replacing an existing machine because the site's current waste connection may not suit every model.

Check the drain location and height and whether the dishwasher requires gravity or pumped drainage before making a final decision.

A machine that cannot use the existing waste connection may require additional plumbing work, increasing the true installation cost.

Measure the Whole Warewashing Area

One of the easiest mistakes is measuring only the footprint of the dishwasher.

With a pass-through machine, you also need to consider the hood in its fully raised position.

Look at the complete area, including inlet and outlet benches, the sink and pre-rinse station, water and electrical connections, drainage, wall clearances, ventilation and the space staff need to work safely around the machine.

This is particularly important when replacing an older dishwasher.

Two machines with similar external dimensions may still have different hood heights, rack openings or service connection positions.

Measure the complete installation, not just the machine.

What Features Are Worth Paying For?

Modern pass-through dishwashers can include heat recovery, steam condensation, multiple wash programs, improved filtration, automatic hood systems, drain pumps, double-wall insulation, digital controls and energy-saving modes.

Not every commercial kitchen needs all of them.

The better question is:

Will this feature solve an operational problem or reduce an ongoing cost in my kitchen?

A heat-recovery system may provide considerable value in a busy enclosed wash area. Multiple cycles may be useful when the machine handles everything from lightly soiled plates to heavily soiled kitchen ware.

For a lower-volume operation, some premium features may offer less practical return.

Buy features because they improve your operation, not because they make the specification sheet longer.

The Hidden Cost of Rewashing

A dishwasher that frequently requires dishes to be washed twice is not operating efficiently.

Every rewash consumes additional water, electricity, chemicals, labour and machine capacity.

It also slows the return of clean crockery to service.

Persistent rewashing may be caused by poor rack loading, inadequate scraping, blocked wash arms, incorrect chemical dosing, water-quality problems, inappropriate temperatures or a machine that is simply not suited to the workload.

Reliable first-pass cleaning should therefore be considered part of overall dishwasher efficiency.

The Dishwasher Is Only One Part of the System

A high-performance dishwasher cannot compensate for a poorly designed dish area.

Ideally, dirty ware should move in one direction:

Dirty return → Scrape → Pre-rinse → Dishwasher → Clean landing bench → Storage or service

Dirty and clean items should not repeatedly cross paths.

The inlet bench needs enough room for incoming racks, while the clean side needs sufficient landing space for completed loads.

When these areas are too small, racks begin to accumulate and the dishwasher itself can be forced to wait.

A well-designed warewashing station can therefore improve productivity just as much as choosing a faster dishwasher.

Commercial Dishwasher Brands Available Through SCK

Once you understand your required capacity, services and layout, you can begin comparing suitable machines.

Sydney Commercial Kitchens supplies pass-through dishwashers from a number of established commercial warewashing brands, including Washtech, Eswood, Hobart, Meiko, Classeq and Smeg, among others.

Different brands and models may place greater emphasis on areas such as low water use, heat recovery, simplified controls, high throughput or steam management.

The brand should not be the only reason to choose a machine.

What matters more is whether the dishwasher suits your workload, available power, plumbing, rack requirements and budget.

Commercial Pass-Through Dishwasher Buying Checklist

Before making a final decision, check:

• Peak washing capacity and rack size
• Water and electrical requirements
• Drainage and water treatment needs
• Overall dimensions and hood-open height
• Heat-recovery or steam-management requirements
• Wash programs and chemical dosing
• Warranty, parts and service support

The objective is not to choose the dishwasher with the longest feature list.

It is to choose the machine that fits your kitchen.

Frequently Asked Questions

What is another name for a pass-through dishwasher?

Pass-through dishwashers are also commonly called hood-type dishwashers, hood dishwashers or upright commercial dishwashers. They are generally designed for higher-volume warewashing than compact undercounter machines.

Are pass-through dishwashers faster than undercounter dishwashers?

They are generally designed for higher-volume operations. Their biggest advantage is often the continuous rack workflow rather than cycle speed alone.

Do pass-through dishwashers require three-phase power?

Many higher-capacity models do, but single-phase options are also available. Always check the electrical requirements of the specific dishwasher before purchasing.

What rack size do pass-through dishwashers use?

Many models use approximately 500 × 500 mm racks, although this varies. Check compatibility if you intend to reuse existing dishwasher racks.

Is heat recovery worth it?

Heat recovery can be particularly useful in heavily used kitchens because it may reduce wasted heat and the amount of steam entering the wash area. Its value depends on how frequently the dishwasher operates and the specific installation.

Do I need a water softener?

It depends on local water conditions and the manufacturer's requirements. Hard water can contribute to scale and affect long-term dishwasher performance.

How many dishwasher racks should I have?

You should have enough racks to maintain a continuous workflow. Ideally, staff should be able to prepare the next load while another rack is washing and a clean rack is being unloaded.

Which commercial dishwasher brand is best?

There is no single best brand for every commercial kitchen. Capacity, efficiency, electrical and plumbing requirements, rack compatibility, installation conditions and service support should be considered alongside brand reputation.

Choosing the Right Pass-Through Dishwasher

The best commercial pass-through dishwasher is not necessarily the fastest, most expensive or most powerful machine.

It is the one that can comfortably handle your busiest service while fitting your kitchen layout and available services.

For some venues, maximum throughput will be the priority. For others, lower water use, heat recovery, single-phase power, steam management or compatibility with existing benches may be more important.

Look beyond the initial purchase price and consider the complete cost of warewashing, including labour, water, electricity, chemicals, installation, maintenance and potential downtime.

A well-planned pass-through system should keep dirty ware moving efficiently, return clean crockery quickly to service and make the wash area easier for staff to manage.

How Sydney Commercial Kitchens Can Help

Choosing a commercial dishwasher involves more than comparing specifications.

The machine needs to suit your washing volume, kitchen layout, electrical supply, plumbing, drainage and workflow.

Sydney Commercial Kitchens supplies a broad range of commercial pass-through dishwashers and can help hospitality operators compare suitable options based on their practical requirements.

If you are replacing an existing machine, providing details such as your current model, available space, electrical supply and approximate peak washing volume can help narrow down suitable replacements.

For new kitchens, it is worth considering the dishwasher together with the surrounding benches, pre-rinse area, racks and drainage so the entire warewashing station works efficiently.
